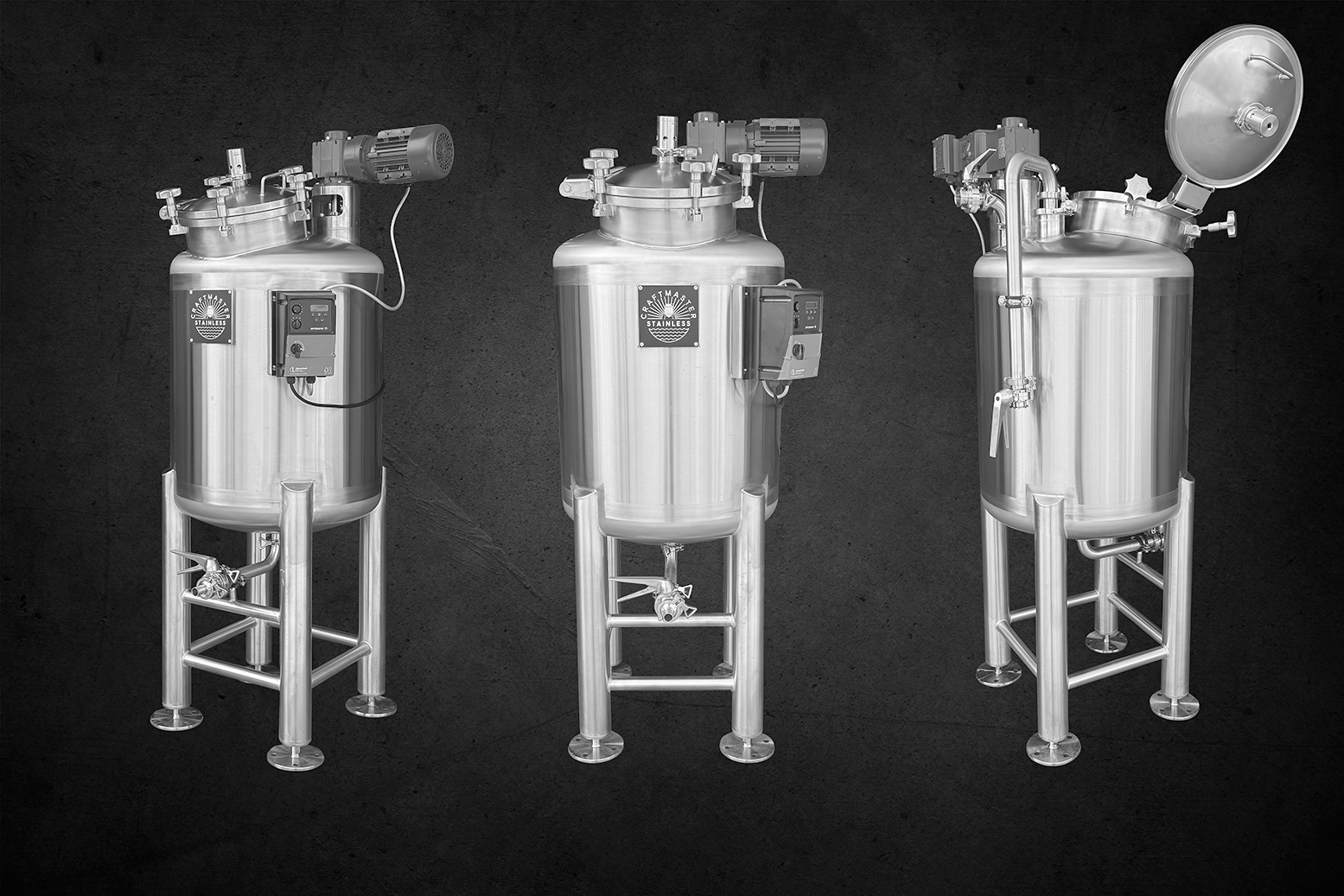

Stainless Steel Mixing Tanks

Many industries including brewing, wine making, kombucha, coffee, cannabis, pharmaceutical, and food processing find the need for a storage vessel that can also mix ingredients together. That is why at Craftmaster Stainless we are proud to introduce our Stainless Steel Mixing Tanks available in jacketed and single wall. We offer a full range of stainless steel liquid mixing tank sizes that can be customized to best fit the needs of your facility. We understand that every Customer’s specifications are unique; therefore, we work hard to find the right-fitting equipment for each of our customers. For more information about our stainless steel mixing tanks for sale and how we can assist you in growing your facilities, give us a call at the number below.

Please feel free to give us a call 916-750-4677 or hit the request quote button below and we will reach out to you.

• Interior/Exterior Tig welded 304 Stainless Steel

• 3mm interior tank wall thickness

• 2mm exterior shell wall thickness

• 3” Thick polyurethane insulation on shell and cone (chloride free)

• 2B sanitary interior polish (pickled and passivated)

• 4N exterior polish (sanitary)

• Adjustable feet with anchor holes

• Operating pressure 20psi (Tested at 30psi)

• 3/4” FNPT for glycol attachment

• 20psi pressure/vacuum relief valve

• Thermometer Gauge With 8” Long Thermo well

• Perlick style sample valve

• Full shadow less side man way door (15”x17”)

• 2 piece 10” carbonation stone with ball valve

• 0-45 PSI, Sanitary 1.5" Tri-Clamp Pressure Gauge

• Multiple Premium Motor Options

• Multiple Controlled Rake and Plow Options

• Oversized 2” bottom outlet

• 1/2” FNPT for RTD temp control thermowell (RTD not included)

• CIP arm with 2.5” spinning spray ball and 360deg of coverage

• Stainless steel handle Butterfly valves

• Dish bottom with average of 20% head space

• Optional Wedge-wire false bottom

• Multiple Top Port Options

• All necessary EPDM gaskets and Hardware included
