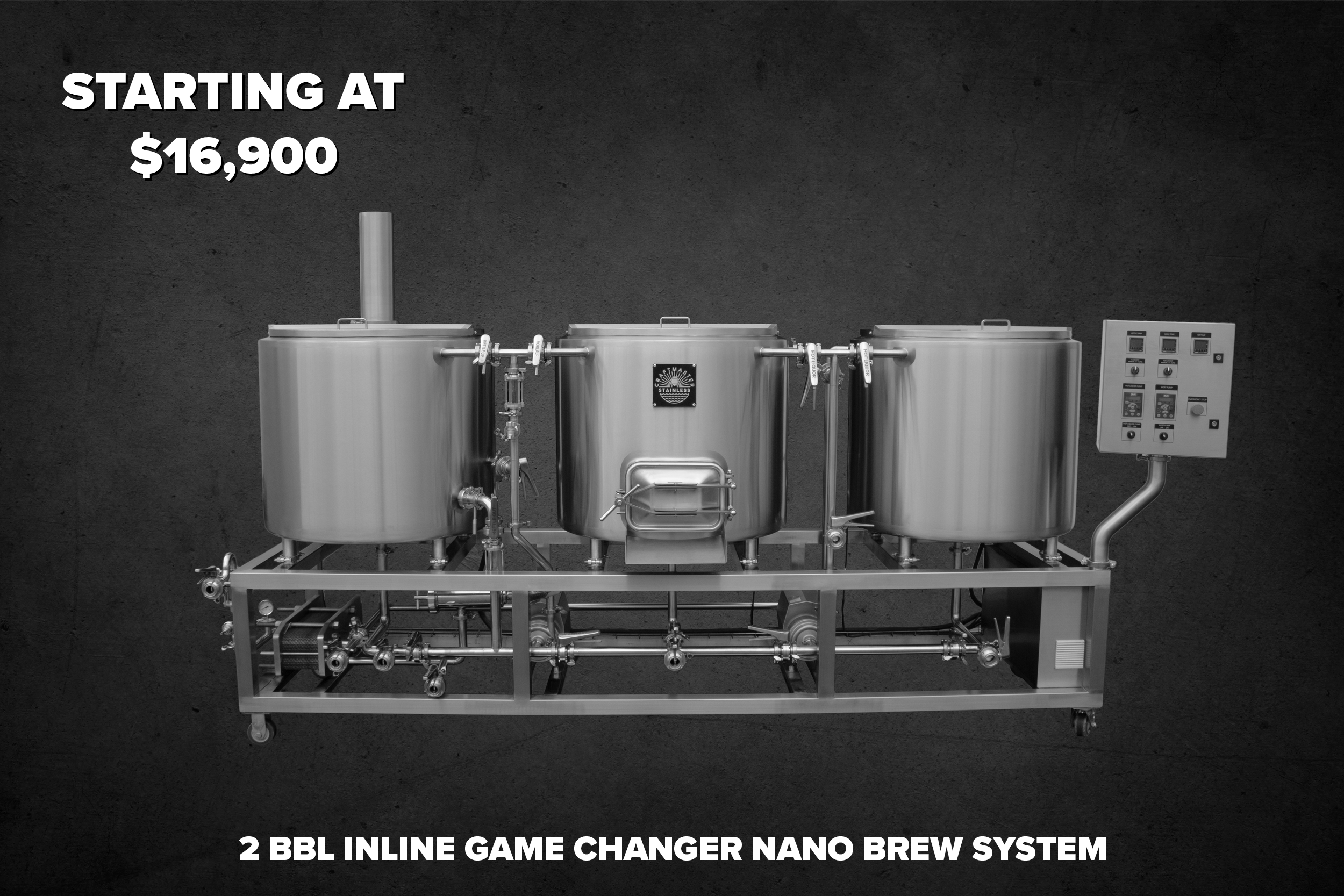

Featuring many of the same excellent features and amenities of our popular Pro Line Brewhouse Systems, the 2BBL Game Changer Nano Brewhouse System features the same high-quality construction and exceptional value that our brewing customers are familiar with. This inline beer brewing system is ideal for brewers of all shapes and sizes, featuring high-quality precision TIG-welded joints and UL-certified electrical control components.

Whether you’re a hobbyist home brewer looking to up your game to the next level or a microbrewery looking to experiment with new recipes and batches, this pilot brewing system from Craftmaster Stainless is for you. Our 3-vessel brewing system features a hot liquor tank, kettle, and mash, all inline-mounted, which makes it easy to move and transport with the heavy-duty roller castors.

Get the 2BBL Game Changer Nano Brewhouse System for your brewery at an affordable price today!

   2BBL COMBINED MASH / LAUTER TUN

• Working Capacity: 2BBL Gross Capacity: 3.125BBL

• Wort Recirc/Vorlauf pipe with sight glass

• Detachable sparge ring

• Graduation marks on inside wall of Mash Tun

•  360° Rotating Spray Ball to clean in place

• Removable False Bottom, 0.7mm milled gap

2BBL ELECTRIC COMBINED KETTLE / WHIRLPOOL TANK

• Working Capacity: 2BBL Gross Capacity: 3.125BBL

• JFE Low level Sensors

• Tangential Whirlpool Inlet

• Bottom Drain outlet

• 1x 15KW Electric Heating Elements

•  360° Rotating Spray Ball to clean in place

• Wort outlet with rotatable DIN fitting racking arm

• Graduation Markson inside wall

 2BBL HLT (HOT LIQUOR TANK)

• Gross Capacity: 3.125BBL

• 1x 15KW Electric Heating Elements

• JFE Low level Sensors

• Graduation marks on inside wall of HLT

 2BBL SKID MOUNTED & PIPING

• All fittings, gaskets and valves are included

• 1.5" sanitary tubing connects vessels, heat exchanger and pumps

• HLT Pump Controlled by VFD

• Mash/Kettle Pump Controlled by VFD

• PID Temperature Controllers for each vessel

• On/Off switches for electric heating elements

• On/Off switches for motors with VFDs

• Emergency Stop Switch

• CE, ISO, UL Certified Components

   PLATE HEAT EXCHANGER, 2BBL, 2m2

• Working Capacity: 2m2, Single Stage Heat Exchanger

• Design Pressure: 145psi

• Design Temperature: 300F

• Hop /Strainer mounted before PHE

• Temperature Gauge after PHE

• Sight Glass mounted after PHE

• Wort aeration stone mounted in line with sight glass and temperature gauge

5 KW RIMS HEATING ELEMENT

RIMS stands for Recirculating Infusion Mash System. It continuously pulls mash wort out of the mash tun, pumps it through the tube where an electrical heating element is installed resulting in better mash temperature stability.
