GAME CHANGER NANO BREWHOUSE SYSTEM
3.5 BBL DECK

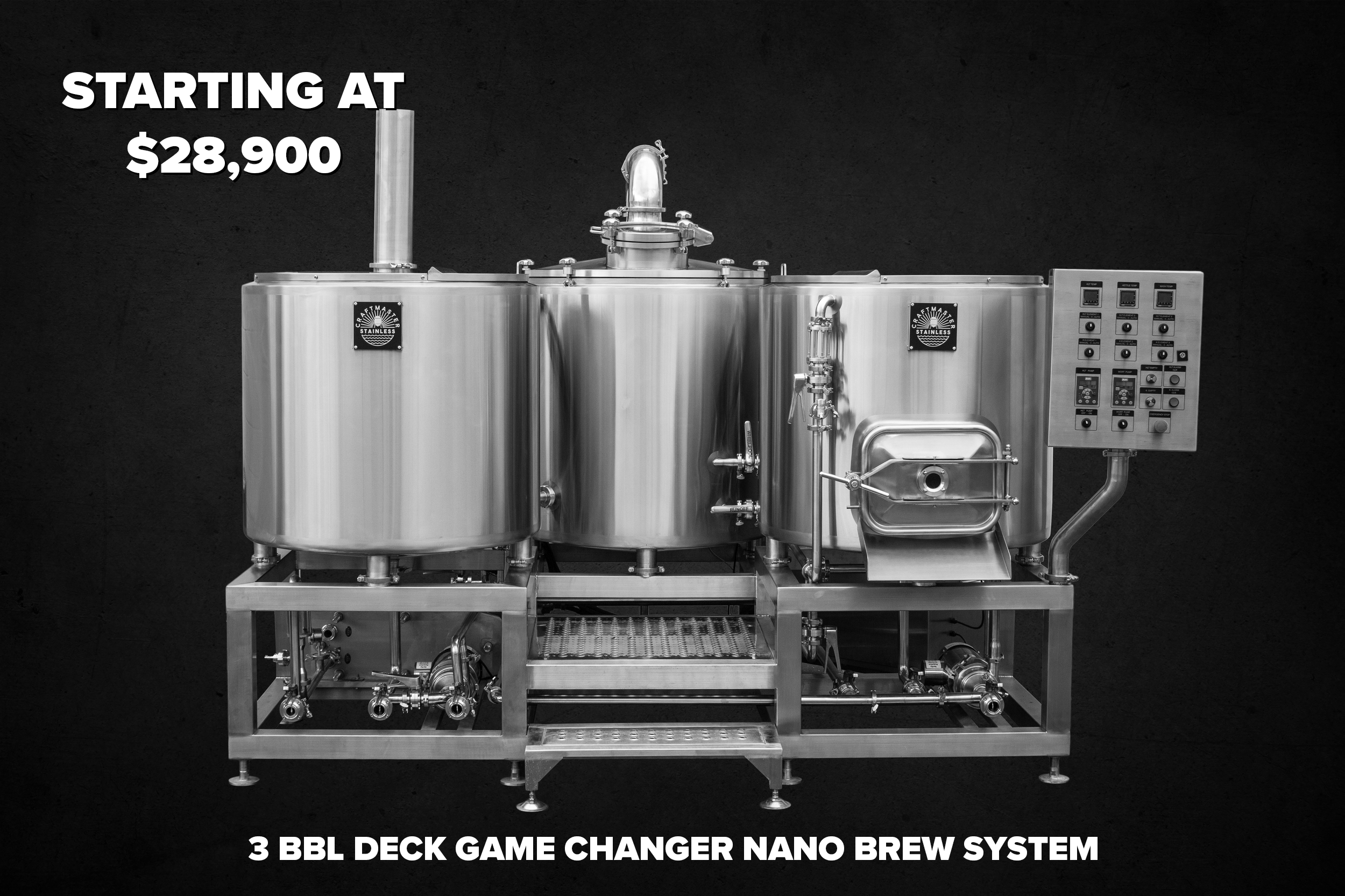

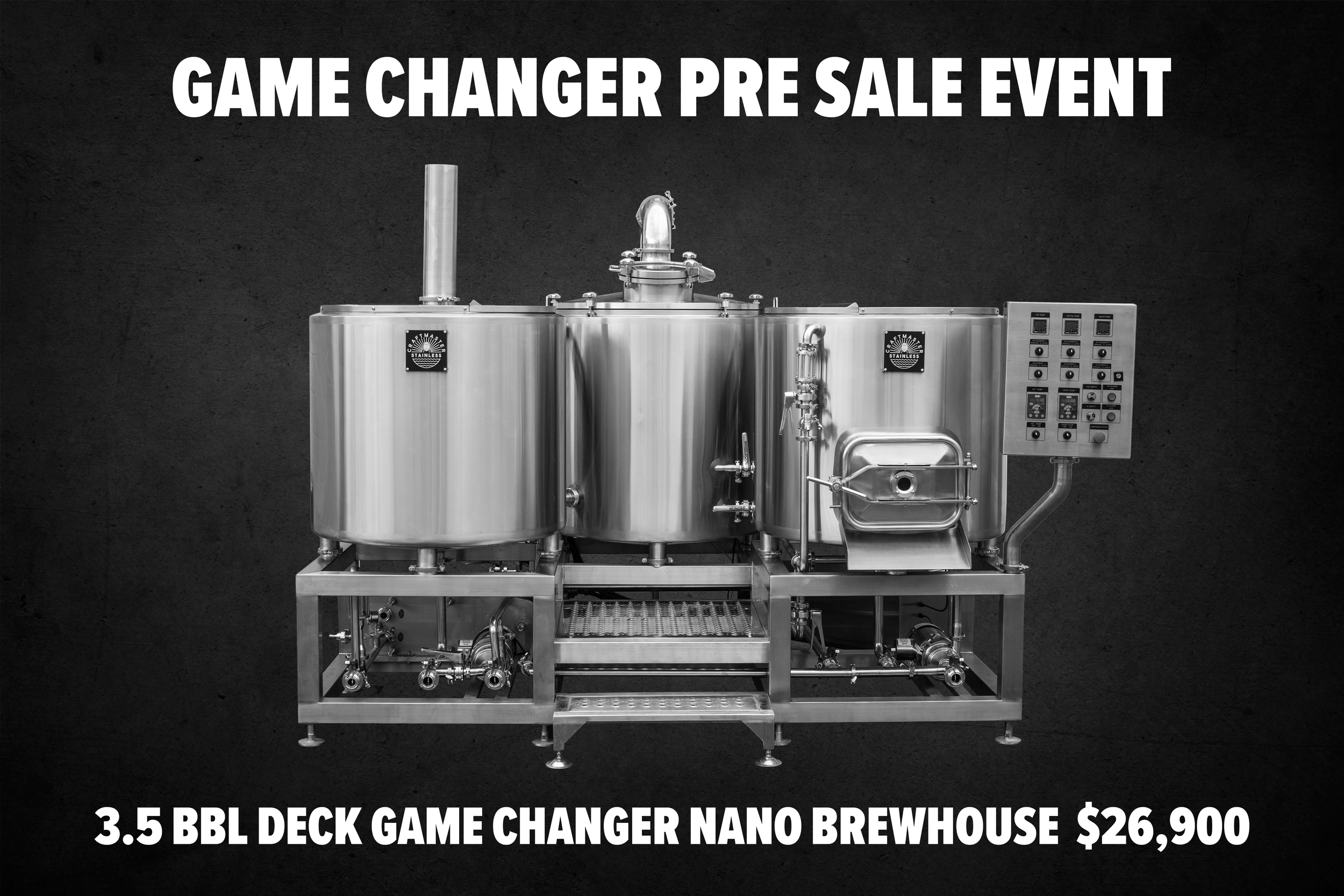

A game-changing product breaks the mold and offers an entirely new value to customers, and that’s precisely what the 3.5BBL Game Changer Nano Brewhouse System does. The 3-vessel system from Craftmaster Stainless is an all-in-one brewery system with a hot liquor tank, kettle, and mash inline-mounted on a skid with roller castors for easy use and transport.
This nano brewery equipment is ideal for many brewers, whether they’re a microbrewery seeking a pilot brewing system for sale to experiment with new recipes or a home hobbyist ready to take their amateur brewing to a new level of sophistication and quality.
Whatever type of brewer you are, if you’re looking for high-quality, affordable, and convenient stainless steel brewing equipment, look no further than the 3.5BBL Game Changer Nano Brewhouse System. Learn more about the 3.5BBL Nano System and everything it comes with below.
Key Features
3.5BBL COMBINED MASH / LAUTER TUN
Working Capacity: 3.5BBL Gross Capacity: 5BBL
Wort Recirc/Vorlauf pipe with sight glass
Detachable sparge ring
Graduation marks on inside wall of Mash Tun
360° Rotating Spray Ball to clean in place
SUS 304 Stainless Removable False Bottom, 0.7mm milled gap
3.5BBL ELECTRIC COMBINED KETTLE / WHIRLPOOL TANK
Working Capacity: 3.5BBL Gross Capacity: 5BBL
Dish head with Tangential Whirlpool Inlet
Bottom Drain outlet
3x Electric Heating Elements, Individual On/Off Controlled
360° Rotating Spray Ball to clean in place
Wort outlet with rotatable DIN fitting racking arm
Graduation Markson inside wall of Kettle
3.5BBL HLT (HOT LIQUOR TANK)
Gross Capacity: 5BBL
3x Electric Heating Elements, Individual On/Off Controlled
Graduation marks on inside wall of HLT
3.5BBL, SKID MOUNTED, WORKING PLATFORM & PIPING
All fittings, gaskets and valves are included
1.5" sanitary tubing connects vessels, heat exchanger and pumps
2x 1HP Centrifugal Brewhouse Pumps
HLT Pump Controlled by VFD
Mash/Kettle Pump Controlled by VFD
JFE Low level Sensors, HLT & KWT
Individually Controlled Heating Elements
CONTROL CABINET
PID Temperature Controllers for each vessel
On/Off switches for electric heating elements
On/Off switches for motors with VFDs
Emergency Stop Switch
CE, ISO, UL Certified Components
Plate Heat Exchanger, 3.5BBL, 4m2
Material: SS304
Working Capacity: 4m2, Single Stage Heat Exchanger
Design Pressure: 145psi
Design Temperature: 300F
Hop /Strainer mounted before PHE
Temperature Gauge after PHE
Sight Glass mounted after PHE
Wort aeration stone mounted in line with sight glass and temperature gauge
OPTIONAL UPGRADES
5 KW RIMS HEATING ELEMENT
RIMS stands for Recirculating Infusion Mash System. It continuously pulls mash wort out of the mash tun, pumps it through the tube where an electrical heating element is installed resulting in better mash temperature stability.
GRAIN RAKE AND MOTOR
Dont want to stir by hand? No problem, we offer a grain rank and motor with full VFD Speed control on our larger nano systems.
CONDENSER STACK
Our condenser stacks will keep steam from condensing and dripping back into the kettle. Instead, the stack allows steam to vent out and collect down towards a floor drain.
BOWPELLER PUMPS
Get the same industry leading low sheer pumps that we use on the Pro Line systems on your nano brew systems!
