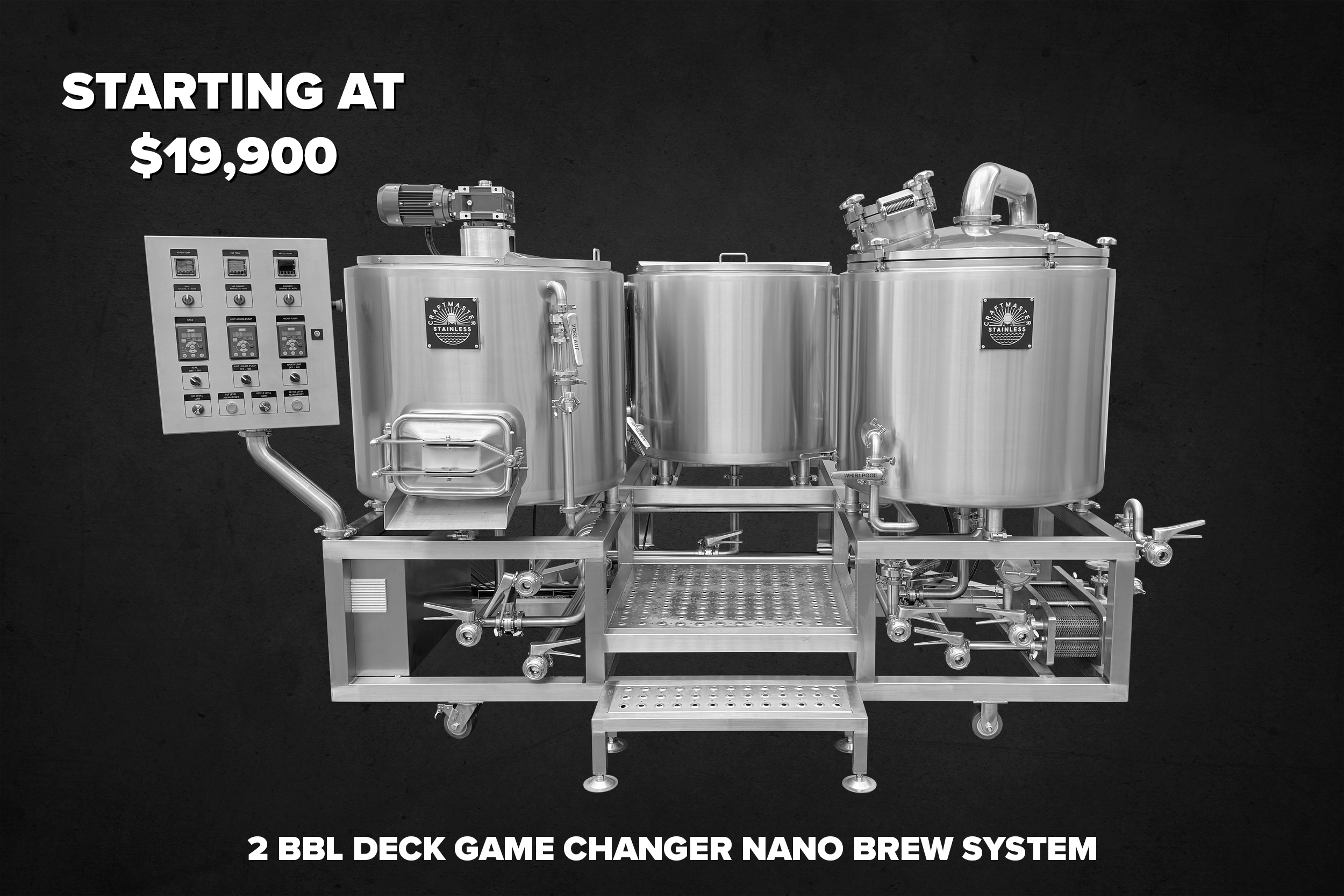

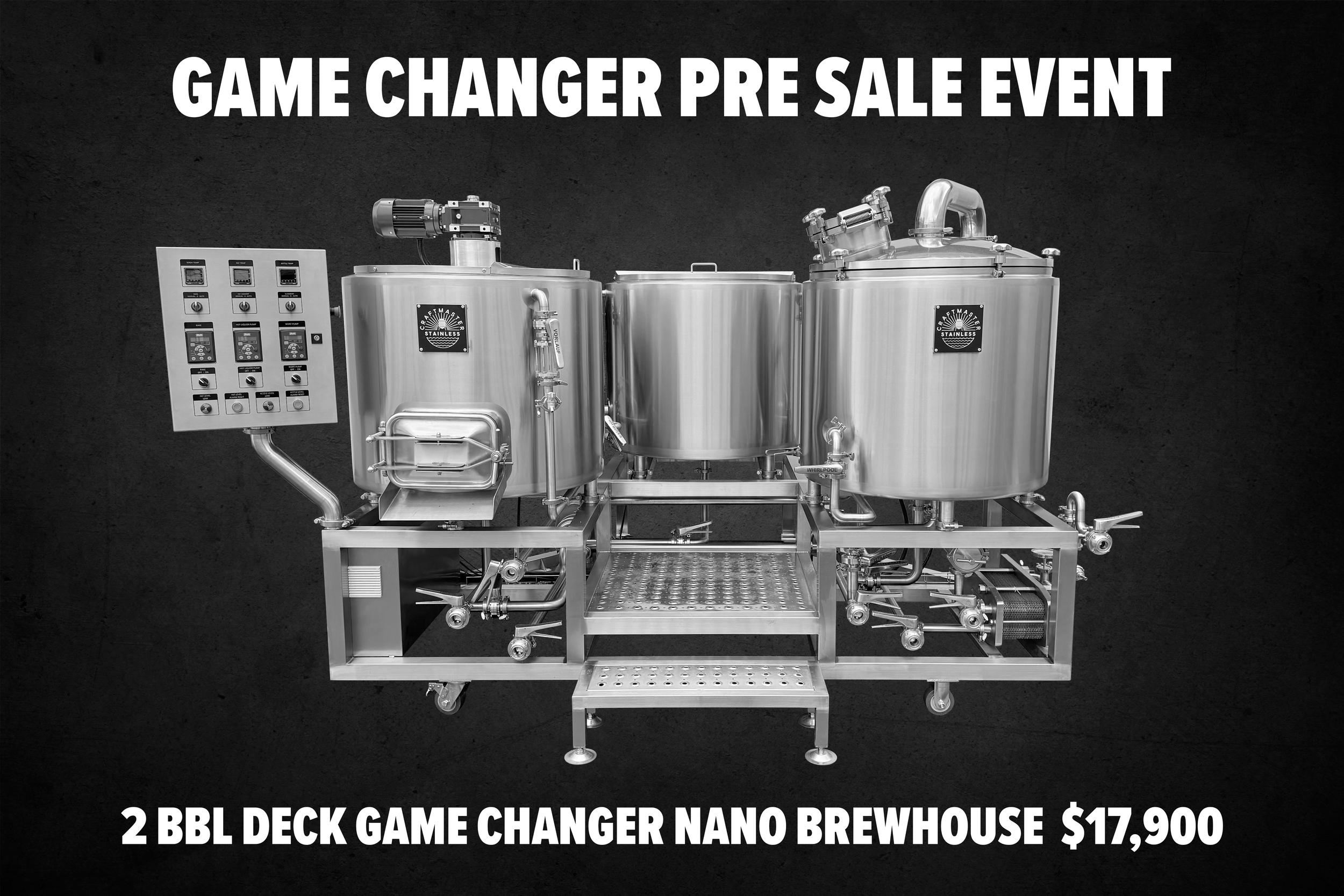

Game Changer Nano Brewing Systems

2 BBL Deck

With high-quality construction, convenient designs, and affordable pricing, the 2BBL Game Changer Nano Brewing Systems from Craftmaster Stainless are, as their name suggests, game changers for brewers. Brewers can now get a complete brewing system in one easy-to-use, affordable package of equipment that includes a hot liquor tank, kettle, and mash, all inline-mounted in one package.

The 2BBL brewhouse system and other systems are made with the high-quality care and expertise that Craftmaster Stainless is known for, featuring oversized 304 stainless steel framing, heavy-duty castors, VFD pump control, and much more. If you’re a microbrewery looking for a pilot brewing system to test and experiment with new recipes, you need to look at our deck microbrewery systems below.

View the CAD drawings of the 2BBL Game Changer Nano Brewing Systems below, or contact our staff to hear more about Craftmaster Stainless’s products and put in an order for your next brewing system!

DOWNLOAD 2 BBL Deck CAD DRAWING

DOWNLOAD PDF COMPARISON SHEET

2BBL COMBINED MASH / LAUTER TUN

• Working Capacity: 2BBL Gross Capacity: 3.125BBL

• Wort Recirc/Vorlauf pipe with sight glass

 • Detachable sparge ring

• Graduation marks on inside wall of Mash Tun

• 360° Rotating Spray Ball to clean in place

• Removable False Bottom, 0.7mm milled gap

   2BBL ELECTRIC COMBINED KETTLE / WHIRLPOOL TANK

• Working Capacity: 2BBL Gross Capacity: 3.125BBL

• JFE Low level Sensors

• Tangential Whirlpool Inlet

• Bottom Drain outlet

• 1x Electric Heating Elements

• 360° Rotating Spray Ball to clean in place

• Wort outlet with rotatable DIN fitting racking arm

• Graduation Markson

  2BBL HLT (HOT LIQUOR TANK)

 • Gross Capacity: 3.125BBL

 • 1x Electric Heating Elements

 • JFE Low level Sensors

• Graduation marks

    2BBL, SKID MOUNTED, WORKING PLATFORM & PIPING

• All fittings, gaskets and valves are included

• 1.5" sanitary tubing connects vessels, heat exchanger and pumps

 • HLT Pump Controlled by VFD

 • Mash/Kettle Pump Controlled by VFD

   CONTROL CABINET

• Temperature Controllers for each vessel

 • On/Off switches for electric heating elements

• On/Off switches for motors with VFDs

• Emergency Stop Switch

• CE, ISO, UL Certified Components

   PLATE HEAT EXCHANGER, 2BBL, 1m2

• Working Capacity: 2m2, Single Stage Heat Exchanger

• Design Pressure: 145psi

• Design Temperature: 300F

• Hop /Strainer mounted before PHE

 • Temperature Gauge after PHE

 • Sight Glass mounted after PHE

• Wort aeration stone mounted in line with sight glass and temperature gauge

5 KW RIMS HEATING ELEMENT

RIMS stands for Recirculating Infusion Mash System. It continuously pulls mash wort out of the mash tun, pumps it through the tube where an electrical heating element is installed resulting in better mash temperature stability.

GRAIN RAKE AND MOTOR

Dont want to stir by hand? No problem, we offer a grain rank and motor with full VFD speed control on our larger nano systems.

BOWPELLER PUMPS

Get the same industry leading low sheer pumps that we use on the Pro Line systems on your nano brew systems!
